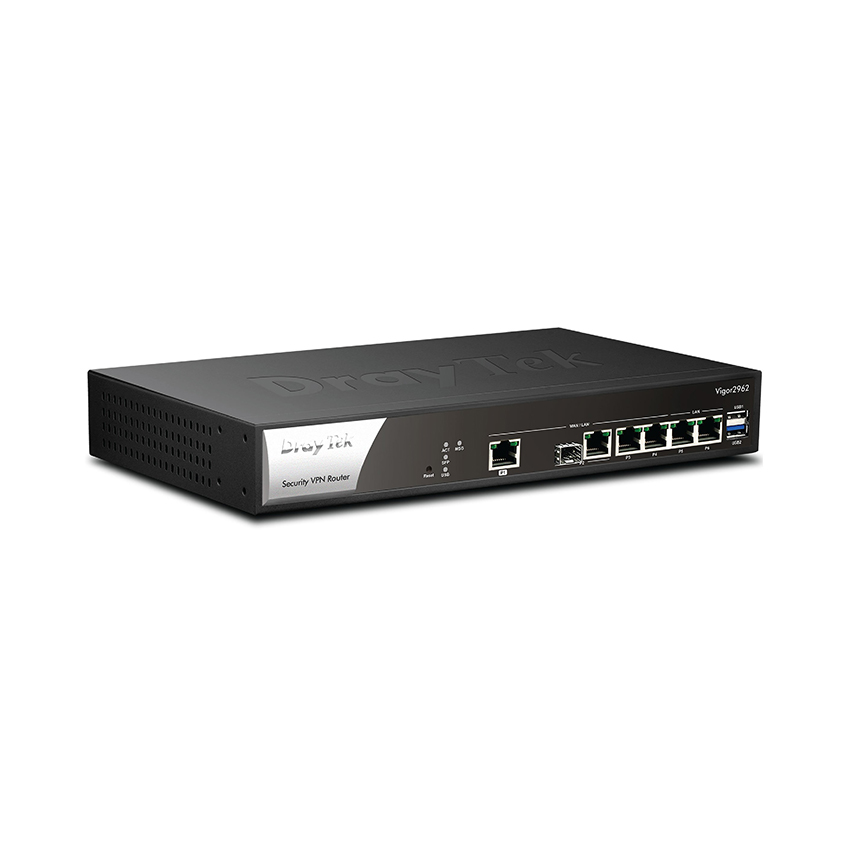

Cân bằng tải Draytek Vigor 2962

• 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P1)
• 1x SFP Fiber/ 1G Ethernet (P2)
• 2x 1G/100M/10M Ethernet, RJ-45 (P3-P4)

LAN

• 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P1)
• 1x SFP Fiber/ 1G Ethernet (P2)
• 4x 1G/100M/10M Ethernet, RJ-45 (P3-P6)

USB

• 1x USB 2.0
• 1x USB 3.0

• AC 100~240V, 50/60Hz
• Power Consumption 35 watt

•  Outbound Policy-based Load-balance
•  WAN Connection Failover

WAN Protocol:

•  DHCP Client
•  Static IP
•  PPPoE
•  PPTP
•  L2TP

• Packet Forwarding Acceleration
• DHCP client/relay/server
• DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
• IGMP v2/v3
• LAN DNS /DNS Forwarding
• Dynamic DNS
• NTP client
• Call scheduling
• RADIUS /TACACS+ Client
• RADIUS Server
• Active Directory /LDAP compatible (client)
• DNS cache/proxy
• UPnP 50 sessions
• Wake on LAN
• Bonjour service
• Routing protocol :
  • Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries)
  • RIP v1/v2

• Web-Based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/FTP/HTTP/TR-069
• Logging via Syslog
• SNMP Management with MIB-II
• Management Session Time Out
• 2-level management (Admin/User Mode)
• TR-069 Management
• TR-104 Management

• QoS :
  •  Guarantee Bandwidth for VoIP
  •  Class-based Bandwidth Guarantee by User-defined Traffic Categories
  •  DiffServ Code Point Classifying
  •  4-level Priority for Each Direction (Inbound/Outbound)
  •  Bandwidth Borrowed
• Bandwidth / Session Limitation
• Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping *

• Up to 200 VPN Tunnels (including 50 SSL VPN tunnels)
• Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
• Encryption: MPPE and Hardware-based AES/DES/3DES
• Authentication: MD5, SHA-1
• IKE Authentication: Pre-shared Key and Digital Signature (X.509)
• LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
• DHCP over IPSec
• IPSec NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Pass-Through
• mOTP

• DMZ Host, Port-redirection, Port Open (Up to 100 entries) và Port Triggering(Lên đến 40 Entries)
• Object-based Firewall
• MAC Address Filter
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS Prevention
• IP Address Anti-Spoofing
• E-mail alert and logging via Syslog
• Bind IP to MAC Address
• Time Schedule Control

Central Device Management

• AP Management : 30 nodes (independent with External Device feature)*
• Central VPN Management : 8 nodes
• Switch Management : 10 nodes *

Content Security Management (CSM)

• APP Enforcement
  • Support APPE Signature Upgrade by license.
• URL Content Filter
  • Access Control : URL Keyword Blocking (White/Black List)
  • Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking
• Web Content Filter (support Cyren and BPjM )

• 3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle
  (USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer)
• File System :
  • Support FAT32 / FAT16 file system
  • Support FTP function for File Sharing
